Category: Discrete Semiconductor Products
                  Transistors
                  FETs, MOSFETs
                  Single FETs, MOSFETs
Mfr: Nexperia USA Inc.
Packaging: Tape & Reel (TR)
                     Cut Tape (CT)
                     Digi-Reel®
Part Status: Active
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 40 V
Current – Continuous Drain (Id) @ 25°C: 6.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 23mOhm @ 6.2A, 10V
Vgs(th) (Max) @ Id: 2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 10 V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 582 pF @ 20 V
Power Dissipation (Max): 652mW (Ta), 7.5W (Tc)
Operating Temperature: -55°C ~ 175°C (TJ)
Grade: Automotive
Qualification: AEC-Q101
Mounting Type: Surface Mount

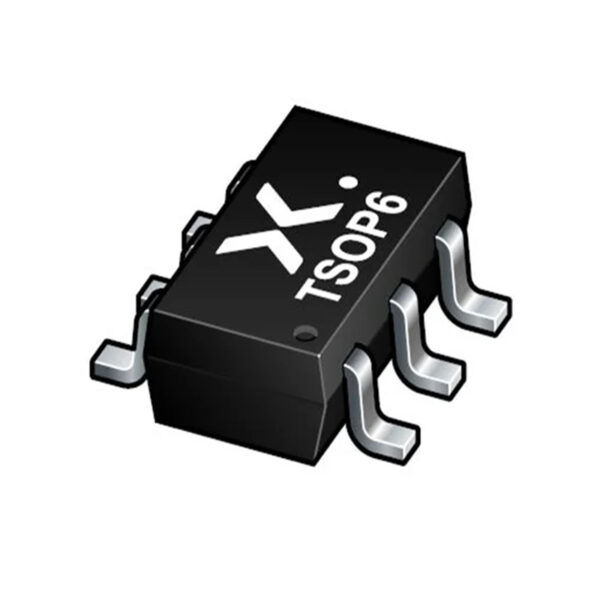

Supplier Device Package: 6-TSOP
Package / Case: SC-74, SOT-457
Base Product Number: PMN20
