Category: Discrete Semiconductor Products
                  Transistors
                  Bipolar (BJT)
                  Single, Pre-Biased Bipolar Transistors
Manufacturer: Nexperia USA Inc.
Packaging: Tape & Reel (TR)
                     Cut Tape (CT)
                     Digi-Reel®
Part Status: Active
Transistor Type: NPN – Pre-Biased
Current – Collector (Ic) (Max): 100 mA
Voltage – Collector Emitter Breakdown (Max): 50 V
Resistors Included: R1 and R2
Resistor – Base (R1): 10 kOhms
Resistor – Emitter Base (R2): 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic: 100mV @ 250µA, 5mA
Current – Collector Cutoff (Max): 1µA
Frequency – Transition: 230 MHz
Power – Max: 250 mW
Grade: Automotive
Qualification: AEC-Q101
Mounting Type: Surface Mount

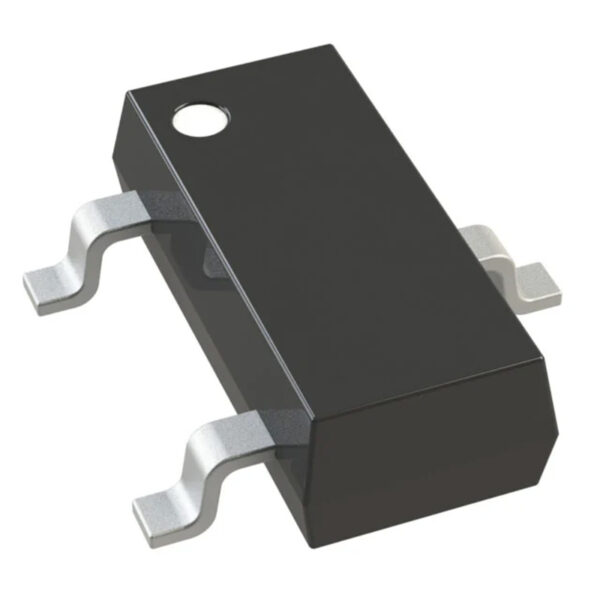

Package / Case: TO-236-3, SC-59, SOT-23-3
Supplier Device Package: TO-236AB
Base Product Number: PDTC114
