Category: Discrete Semiconductor Products
                  Transistors
                  FETs, MOSFETs
                  Single FETs, MOSFETs
Mfr: Nexperia USA Inc.
Series: TrenchMOS™
Packaging: Tape & Reel (TR)
                     Cut Tape (CT)
                     Digi-Reel®
Part Status: Active
FET Type: P-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 30 V
Current – Continuous Drain (Id) @ 25°C: 230mA (Ta)
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Rds On (Max) @ Id, Vgs: 4.1Ohm @ 200mA, 4.5V
Vgs(th) (Max) @ Id: 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 0.72 nC @ 4.5 V
Vgs (Max): ±8V
Input Capacitance (Ciss) (Max) @ Vds: 46 pF @ 15 V
FET Feature: –
Power Dissipation (Max): 350mW (Ta), 1.14W (Tc)
Operating Temperature: -55°C ~ 150°C (TJ)
Grade: Automotive
Qualification: AEC-Q101
Mounting Type: Surface Mount
Supplier Device Package: TO-236AB

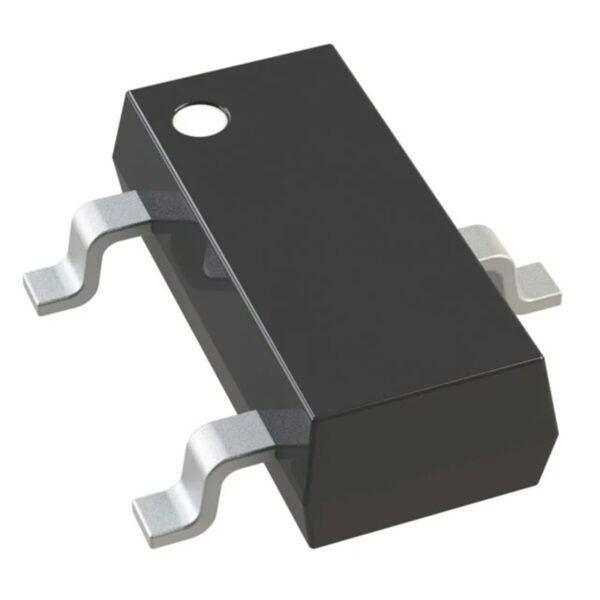

Package / Case: TO-236-3, SC-59, SOT-23-3
Base Product Number: NX3008
