Category: Discrete Semiconductor Products
                  Transistors
                  FETs, MOSFETs
                  Single FETs, MOSFETs
Vgs(th) (Max) @ Id: 3.5V @ 90µA
Mfr: Infineon Technologies
Gate Charge (Qg) (Max) @ Vgs: 10.5 nC @ 10 V
Series: CoolMOS™ P7
Vgs (Max): ±16V
Packaging: Tape & Reel (TR)
                     Cut Tape (CT)
                     Digi-Reel®
Input Capacitance (Ciss) (Max) @ Vds: 364 pF @ 400 V
Part Status: Active
Power Dissipation (Max): 43W (Tc)
FET Type: N-Channel
Operating Temperature: -40°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
Mounting Type: Surface Mount
Drain to Source Voltage (Vdss): 700 V
Supplier Device Package: PG-TO252-3
Current – Continuous Drain (Id) @ 25°C: 8.5A (Tc)

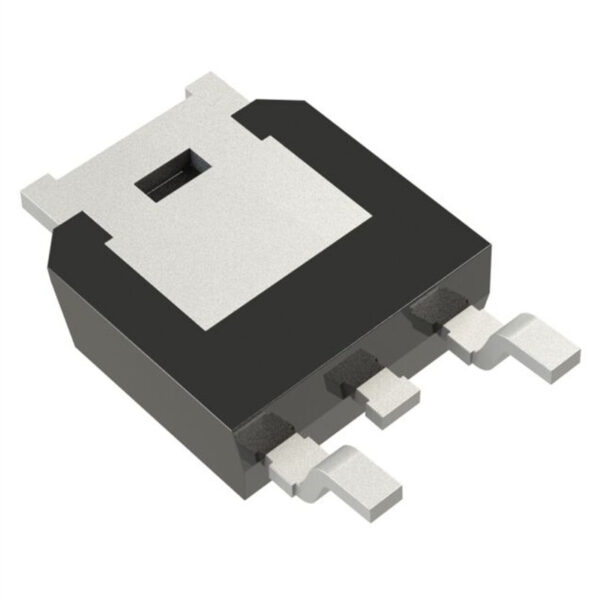

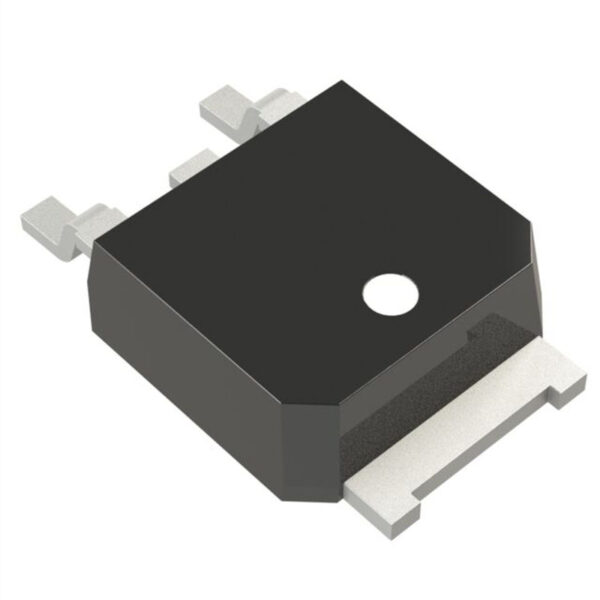

Package / Case: TO-252-3, DPAK (2 Leads + Tab), SC-63
Drive Voltage (Max Rds On, Min Rds On): 10V
Base Product Number: IPD70
Rds On (Max) @ Id, Vgs: 600mOhm @ 1.8A, 10V
