Category: Discrete Semiconductor Products
                  Transistors
                  FETs, MOSFETs
                  Single FETs, MOSFETs
Mfr: onsemi
Series: PowerTrench®
Package: Tape & Reel (TR)
                 Cut Tape (CT)
                 Digi-Reel®
Product Status: Active
FET Type: P-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 30 V
Current – Continuous Drain (Id) @ 25°C: 15.2A (Ta), 28A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Rds On (Max) @ Id, Vgs: 6.8mOhm @ 15.2A, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 130 nC @ 10 V
Vgs (Max): ±25V
Input Capacitance (Ciss) (Max) @ Vds: 5915 pF @ 15 V
FET Feature: –
Power Dissipation (Max): 2.5W (Ta), 73W (Tc)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount

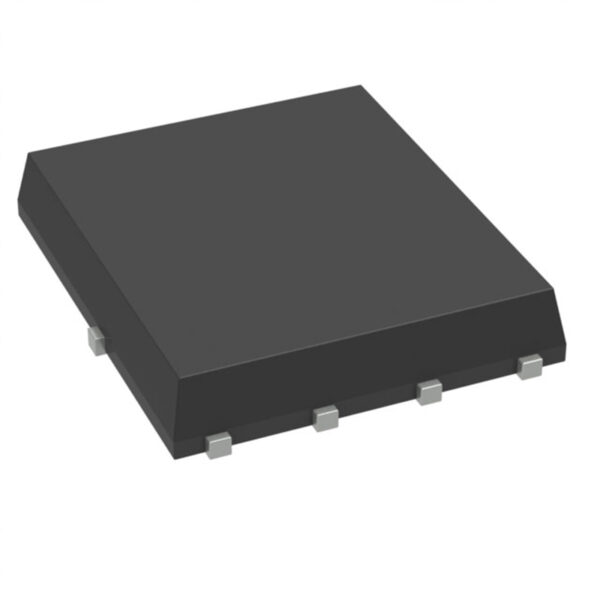

Supplier Device Package: 8-PQFN (5×6)
Package / Case: 8-PowerTDFN
Base Product Number: FDMS6673
