ategory: Integrated Circuits (ICs)
               Power Management (PMIC)
               Voltage Regulators – Linear, Low Drop Out (LDO) Regulators
Mfr: Analog Devices Inc.
Series: –
Packaging: Tape & Reel (TR)
                     Cut Tape (CT)
                     Digi-Reel®
Part Status: Active
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage – Input (Max): 6.5V
Voltage – Output (Min/Fixed): 1.2V
Voltage – Output (Max): 6.23V
Voltage Dropout (Max): .27V @ 2A
Current – Output: 2A
Current – Quiescent (Iq): 2 mA
Current – Supply (Max): 8.7 mA
PSRR: 60db ~ 20dB (100kHz ~ 1MHz)
Control Features: Enable, Soft Start
Protection Features: Over Current, Over Temperature
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount

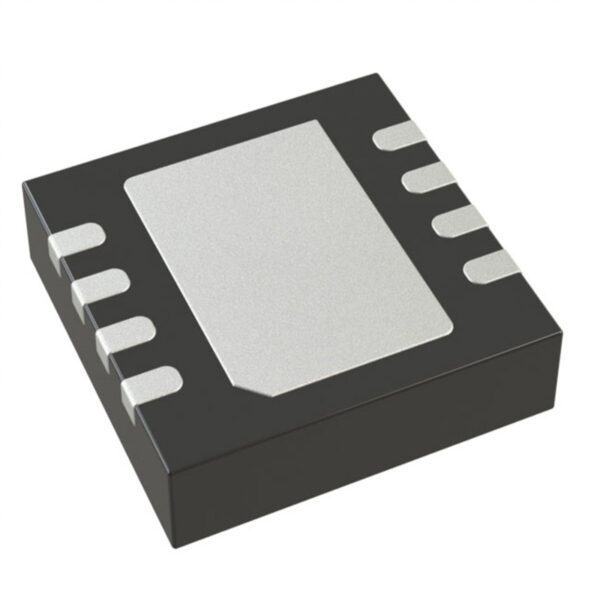

Package / Case: 8-WFDFN Exposed Pad, CSP
Supplier Device Package: 8-LFCSP-WD (3×3)
Base Product Number: ADM7172
