Category: Integrated Circuits (ICs)
                  Logic
                  Gates and Inverters
Mfr: Nexperia USA Inc.
Series: 74LVC
Packaging: Tape & Reel (TR)
                     Cut Tape (CT)
                     Digi-Reel®
Part Status: Active
Logic Type: OR Gate
Number of Circuits: 1
Number of Inputs: 2
Voltage – Supply: 1.65V ~ 5.5V
Current – Quiescent (Max): 4 µA
Current – Output High, Low: 32mA, 32mA
Input Logic Level – Low: 0.7V ~ 0.8V
Input Logic Level – High: 1.7V ~ 2V
Max Propagation Delay @ V, Max CL: 4ns @ 5V, 50pF
Operating Temperature: -40°C ~ 125°C
Grade: Automotive
Qualification: AEC-Q100
Mounting Type: Surface Mount

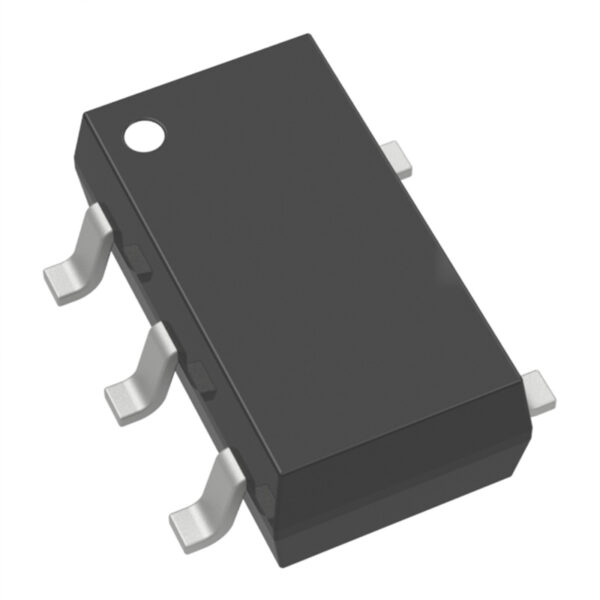

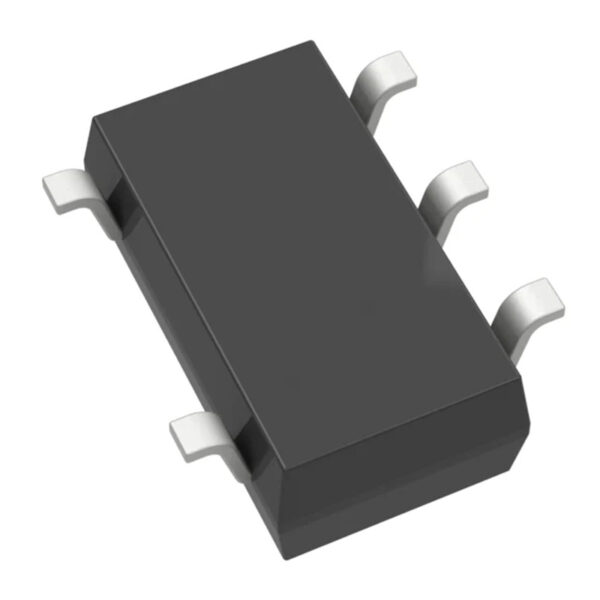

Supplier Device Package: 5-TSSOP
Package / Case: 5-TSSOP, SC-70-5, SOT-353
Base Product Number: 74LVC1G32
